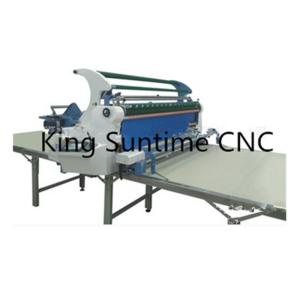

1KW Fabric Spreading Machine WIth Automatic Lifting Device KP-L160
Application materials:
Applicable to all kinds of knitted fabric, spandex fabric, fabric, cloth, shirt cloth, non-woven fabric.
Product description:
1.) If we allow the machine to stop, the cloth on the machine will not be towed away.
2.) Streamline appearance, reduce wind resistance, reduce noise, reduce vibration.
3.) We have simple operation process, to improve the efficiency of production, to ensure high quality.
4.) By emergency stop device, the cloth on the machine has been placed on the machine will not be dragged deformation.
Technical parameter:
| Model |
KP-L160 |
| Width of cloth |
1600mm |
| Machine width |
1830mm |
| Fabric Weight |
bolt fabric: max 100kg |
| batching:max 70kg |
| Voltage |
220V/1P |
| Power |
1KW |
| Batching diameter |
450mm max |
| Spreader speed |
85m/min max |
| Spread cloth height |
single:25mm max |
| double:20mm max |
Main device:
1.) Cutting device: cloth cutting knife can be set according to width of the walking distance and cutting
speed.
2.) The power device for automatically loose cloth cloth, full release cloth fabric tension.
3.) Emergency stop device: on both sides of the cutting bed is provided with a stop with a cable, can at
any time in the cutting bed any position of the cable is pulled for emergency shutdown.
4.) Automatic lifting device can be set up: the fabric thickness, with spreading.
5.) Automatic flush control system.
Advantage:
1.) Simple operation, automatic edge can be automatically increased automatic cumulative layers, no cloth automatically return to the origin; text type man-machine operation more intuitive and clear than icons; imported microcomputer program control system, stable control convenient; automatic prompt convenient maintenance system fault.
2.) In the first generation and the two generation of equipment to improve, you can shop a variety of different fabrics, fabric is more accurate than the two generation of equipment more accurate data error.
FAQS:
1, How long is the delivery time?
For standard machines, it would be 15 days; For non-standard machines and customized machines
according to clients specific requirements.
2. I want a size that you don’t make as standard, is this possible?
Absolutely, we can design and manufacture any size our clients require.
Machine:
