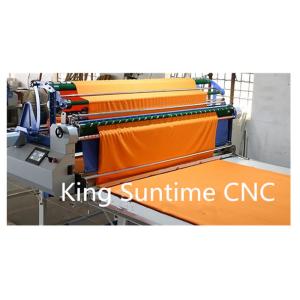

Fabric Spreading Machine With Automatic Layer Number Control System
Application materials:
Applicable to all kinds of knitted fabric, spandex fabric, fabric, cloth, shirt cloth, non-woven fabric.
Product description:
1. )We have simple operation process, to improve the efficiency of production, to ensure high quality.
2.)The machine's system uses the PLC touch LCD screen operating system in Taiwan,
3.) There is no tension in the reverse direction.
4.) Imported microcomputer program control system, control stability.
5.) Digital control automatic adjustment relaxation or compact control system.
Technical parameter:
| Model |
KP-L190 |
| Width of cloth |
1900mm |
| Machine width |
2130mm |
| Fabric Weight |
bolt fabric: max 100kg |
| batching:max 70kg |
| Voltage |
220V/1P |
| Power |
1KW |
| Batching diameter |
450mm max |
| Spreader speed |
85m/min max |
| Spread cloth height |
single:25mm max |
| double:20mm max |
Main device:
1.) Automatic edge device of electric eye: in order of Rab operation process can be done automatically on
the right side
2.) Cloth tail sensor device: when the fabric is finished, the control machine automatically stops running,
and automatically drive back to the fixed point.
3.) Distribution device: with fabric width and tension distribution of effective adjustment, the spreading
without wrinkles phenomenon.
4.) Cutting blade device: a cloth cutting knife can be set according to width of the walking distance and cutting speed.
Advantage:
1.) Machine can automatically adjust the height.
2.) Machine uses a combination of functional methods, according to the factory's cloth and cloth to remove the corresponding function of the corresponding function, effectively reduce the cost of improving the applicability of the machine and reduce maintenance.
3.) Batching and bolt fabric Universal power distribution system.
4.) Can adjust the distribution of the arc effectively flattening cloth.
FAQS:
1. How to pay to you ?
T/T in advance or by Others . We can accept 30% deposit , and balance paid to us before delivery
machine to you .
2. How long is the delivery time?
For standard machines, it would be 15 days; For non-standard machines and customized machines
according to clients specific requirements.
Machine:
